Co2 Laser Cutting Machine

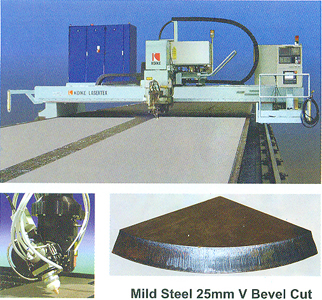

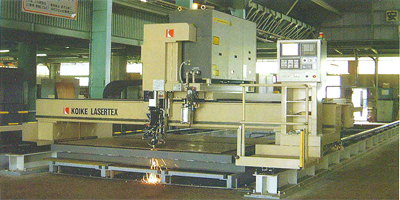

LASERTEX -Wide Span High Output Laser Cutting system
High Speed, High Quality, High Productivity, and operates unmanned
VERSAGRAPH CNC FLAME & PLASMA CUTTING MACHINE
Lasertex Machine
2120 / 2620 / 3120 / 3620
3540 / 4040 / 4540 / 5040 / 5540
3550 / 4050 / 5050 / 5550 / 7050
3550 / 4050 / 5050 / 5550 / 7050
Structure

Gantry Duat drive Resonator on board type
NC

FANUC FS 160i-LB

FANUC FS 180i · MA

FANUC FS 106I - LB
Tape Memory length

1280m

Effective cutuno width

2.1m, 2.6m, 3.1m, 3.6m

3.5m , 4.0m , 5.0m , 5.5m

3.5m , 4.0m , 5.0m, 5.5m, max. 7m

Effective cutting length
Rail length minus 3m.
Rapid Feedrate
24,000 mm/min
Laser Beam path
Fixed Laser Beam lenqth.
FlyinQ Optics
Focal point adjustment
NC Controlled focus function
Lens Holder
Drawer type - one touch exchange
Cutting parameter
NC cutting parameter setting function.
Input Power Supply
200VAC , 3 Phase, 50/60 Hz.

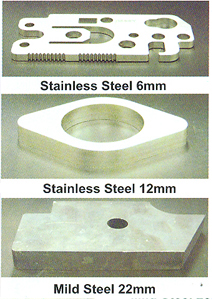

Cutting Thickness

16 mm ( M.S. ),6 mm ( S.S.) I

22 mm (M.S. ). 14 mm (S.S.) I

25 mm (M.S.), 16 mm (S.S.)
28 mm (M.S. ),25 mm (S.S.)
Laser Resonator

FANUC C2000-E

FANUC C 4000-E

TRUMPF TLF5000 Turbo HQ

FANUC C 6000 - E
Principle
High speed axial flow type C02 gas laser depending on high frequency excited method.
Structure

Resonator / Power Supply integrated design.




Rated Output Power
2,000 W
4,000 W
5,000 W
6,000 W
Max. Output Power
2.000 W
4,000 W
5.000 W
6,000 W
Pulsed Peak output
2.700W
5,000 W
5.0OOW
6,000 W
Output stability
+ 1 %
+ 2 %
+ 2 %
+ 2 %
Wavelength
10.6 i m
Beam Mode
Low Order mode
Beam diameter
Approx. 23 mm
Approx. 27 mm
Approx. 27 mm
Approx. 28 mm
Polarised Light
45 degrees linearly
Straight ( Vertical)
Beam dispersion angle
Less than 2mrad
Pulsed Frequency
5 - 2.000 Hz.
Pulse Duty Cycle
0-100 %
Laser Gas
C02 1 He 1 N2 : 5/40 155
Laser gas consumption
20 litrs / hour
20 litrs / hour
Cooling capacity
22.1KW
44.2Kw
55KW
65KVA
Input Power Capacity
33KVA
55KVA
65 KVA
75KVA
