Taylor Studwelding Systems Limited

TAYLOR Studwelding Systems Limited is a specialist in the design, manufacture and supply of Studwelding equipment and studs. Within our range of British built equipment we will have the System to suit your requirements. TAYLOR Studwelding Systems Limited strives to create an environment in which all personnel are valued and encouraged to work together to reach their full potential. We will continue to develop a quality range of studwelding equipment from simple hand held units through to CNC fully automated systems.

CD CDM Series

DA 2400E System

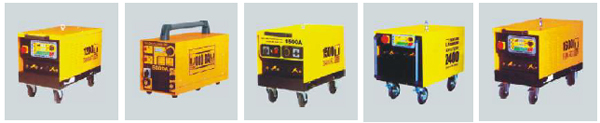

Stud Welding Machines
Taylor - CDM-Capacitor Discharge Stud welding equipment range
CDM-Capacitor Discharge Compact, portable Capacitor Discharge equipment designed to weld up to 10mm diameter studs. With its simple and robust construction the COM range offers an economic and reliable method of fixing Mild Steel ,Stainless Steel, Aluminium and Brass studs. Fast and accurate, the COM range gives you better weld results. Designed and built to exacting standards and meets all required standards, the COM range is EC marked.


Taylor - Drawn ARC Stud welding systems Stud welding equipment range

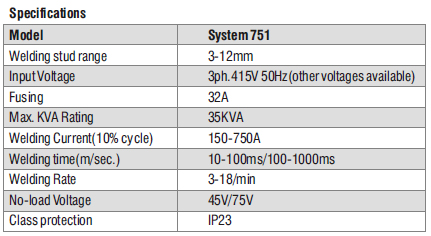

Drawn ARC High reliability and long working life is obtained by using grade one soak tested components and extensive durability testing. Power options enable stud diameters of 1 mm to 30mm to be welded. Some controllers can power up to four hand tools.


Short Cycle System
ARC Short Cycle
• Strong robust construction • Infinitely adjustable time • Constant 750 amp weld current • Size: 480 x 325 x 265mm • Weight: 52kg • Available with gas kit as standard • Welds up to 8mm diameter short cycle studs



Taylormade - CNC Automated Stud welding systems
	The CNC Range Built to high quality standards, the CNC controlled automatic stud feed production unit is a fast and economic method of stud welding.

Easy programming and a quick change system make it ideal for both long and short production runs. Construction • Rigid open aluminium frame with 'T' slot profile bed. • Fitted with linear encoders to give high positional accuracy (Servo systems only.) • Fully guarded.	• Available with either PC or PLC control. • Supplied with heavy duty Servo or Stepper motors to suit customer requirements. • Accuracy better than +/-0.15mm • Up to 4 axis systems available. • Weld areas up to 3000 x 2000mm •Systems will weld threaded, unthreaded and internally threaded studs in Mild steel, Stainless Steel, Aluminium Alloy and Brass from M3 to M8 diameter and 6mm to 35mm length as standard. Other diameters and lengths available.
