Welding Automation |
Tube, Pipe, Panel, Header Automatic Welding |
|
T BEAM WELDING PRODUCTION LINE |
|
|
Specific Purpose
Used for assembly line production of T beam in large and medium-sized shipyard, mainly consisting of
feeding device (magnetic crane), chamfering machine, fixed-welding machine, feeding roller conveyer,
T beam welding machine, discharging roller conveyor, straightening machine, polishing and painting
devices, discharging devices (magnetic crane), etc.
Performance Characteristic
Reduce production period.
Reduce production costs.
Improve the quality of products.
Reduce labor intensity. |
| |
WELDING EQUIPMENT FOR THE LONGITUDINAL JOINT OF VESSEL |
|
Specific Purpose
Used for the welding of the inner and outer longitudinal joint of boilers and pressure vessel.
Performance Characteristic
Easy to operate, work steady and reliable.
|
|
| |
|
WELDING MACHINE FOR THE ANNULAR JOINT OF VESSEL |
|
Specific Purpose
Used for the inner annular and outer annular welding of boilers and pressure vessel.
Performance Characteristic
Easy to operate, save the material and high efficiency.
|
|
| |
|
INTERSECTION LINE WELDING MACHINE SERIES |
|
|
Specific Purpose
Used for the saddle welding of various joints tube, especially in the boiler, pressure vessel and nuclear electrical industry.
Performance Characteristic
Specially designed mechanism for saddle movement
to realize orthogonal cutting with simple operation.
Numerical control on deviation/inclined cutting.
100% of welding qualification rate and simple operation.
|
|
| |
|
INTERSECTION LINE CUTTING MACHINE SERIES |
|
|
Specific Purpose
Used for intersection line cutting of saddle-shaped hole for tube-pipeline-cylindrical vessel and applicable to industries such as boilers, pressure vessel, nuclear power, shipbuilding, pipeline, and oceaneering, etc.
Performance Characteristic
Specially designed mechanism for saddle movement to realize
orthogonal cutting with simple operation.
Numerical control on deviation/inclined cutting.
|
|
| |
|
TUBE-TUBE SHEET WELDING MACHINE SERIES |
|
|
Specific Purpose
This equipment is used for the automatic welding of tube to tube sheet, or self-fuse.
Performance Characteristic
High level automation, convenient parameters setup and high welding qualification.
|
|
| |
|
PORTABLE TUBE END BEVELING MACHINE |
|
|
Specific Purpose
Used for the end beveling of the fixed tube, as nozzle.
Performance Characteristic
The equipment is easy to move and operate.
The coaxiality of the groove is good with high efficiency.
|
|
| |
|
GRINDING MACHINE |
|
|
Specific Purpose
Used for the grinding of the outer longitudinal and annular joint reinforcement.
Performance Characteristic
High grinding efficiency, low labor intensity and good grinding surface quality.
|
|
| |
|
TUBE INSIDE AND OUTSIDE POLISHING MACHINE |
|
|
Specific Purpose
The equipment is mainly used for the polishing of the groove in the inside and outside of straight tube end.
Performance Characteristic
High level automation and high simultaneous polishing efficiency of tube inside and outside;
High polishing quality and no harm to operators;
High level automation and high beveling quality and can ensure welding quality. |
|
| |
|
AUTOMATIC TUBE CUTTING AND EDGE PREPARATION PRODUCTION LINE (ATCP) |
|
Specific Purpose
It is used for the tube edge preparation before straight tube butt welding, including tube length measuring and cutting, tube end beveling, OD and ID polishing of tube edge, tube internal soot cleaning devices, etc
Performance Characteristic
High automation for the entire line, centralized control, only 1-2 operator are needed for supervision and inspection.
High efficiency, impact working beat of each working position, the beat of entire line is within 1.5 minutes.
The production line is equipped with various alarm prompt functions, which makes it easy for maintenance. |
|
| |
|
SPIRAL COILED TUBE BENDING MACHINE |
|
|
Specific Purpose
This machine is used for spiral tube processing, together with tube butting welding machine, conveyor and racks, forced feeding, etc. can form spiral coiled tube production line.
Performance Characteristic
High level automation and simple operation;
High productivity and bending quality. |
|
| |
AUXILIARY EQUIPMENT FOR SERPENTUATOR PRODUCTION |
|
Waterfall Rack
Specific Purpose
Used to store tubes before butt welding with types
of 5, 8 and 10 layers.
Roller-type NC Tube Accuracy length
Feeding Device
Specific Purpose
It is used for tube fix-length feeding for serpentuator
production line.
Forced-feeding Device
Specific Purpose
Used for the motored coveying of tubes on driven rollers
|
|
| |
| |
HEAD / FLANGE FABRICATIDN EQUIPMENT |
|
Specific Purpose
Used for the cutting of the orthogonal and declination of the head, especially in the boiler, pressure vessel and nuclear power industry.
Performance Characteristic
Used for the intersection line welding of the head nozzle, especially in the
boiler, pressure vessel and nuclear power industry.
|
|
| |
GROOVING MACHINE & WELDING MACHINE OF LONG DISTANCE TRANSPORTATION PIPELINE |
|
Specific Purpose
Used for the effective welding of tubes of
different diameters used in the out door
environments.
|
|
| |
PLATE SUBSECTION STREAMLINE |
|
Specific Purpose
Used for streamline production of large and medium-sized shipyard and hull subsections, mainly consisting
of panels and spot welding station, panels welding (one-side welding or double-side welding) station, flip
station, lineation station, longitudinal stiffener installation station, repair station, 90 °rotating station, shifting& rib assembly station, rib welding station, advanced outfitting station, outfitting station, subsection jack-up station, segmented transport station, etc.
Performance Characteristic
Achieve the mechanization and automation of plate subsection assembly welding.
Reduce the shipbuilding period.
Reduce shipbuilding costs.
Improve the quality of products.
Reduce labor intensity.
|
| |
|
Tube, Pipe, Panel, Header Automatic Welding |
|
|
|
Membrane Panel SAW Welding Machine |
Header Welding |
| |
|
| |
|
|
Purpose
The machine is used for the backing welding,
filling welding and cosmetic welding of tube to
tube welding. It is applicable for processing
elbow, tree joint, socket flange, counter-flange
and tube with variable cross sections.
MIG/MAG/C02 welding system can be equipped
for the welding quality and efficiency
improvement.
Parameter
Work Piece Dia. ø630mm
Work Piece Thickness 30mm
|
| |
|
| |
|
|
|
Tube to tube Butt Welding Machine |

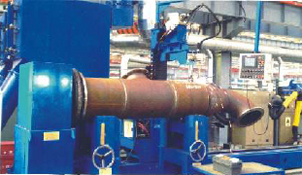

Pipe to Flange Welding Machine |
| |
|
| |
|
|
|
|
Big Nozzle Welding Station for header |
|
Positioners |
|
|
| |
|
|
|
|
 |
|
 |
|
| |
|
|
