solar-panel

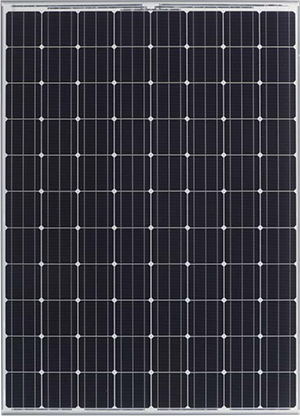

HIT photovoltaic module, VBHN245SJ25, VBHN240SJ25, VBHN23 5SJ25
19.4o/o* 194 W/m2
Water-drainage-frame Water drainage frame
  • Rain water is drained off the module surface.
  • This avoids not only water accumulation, but also water stains after drying.
  • Even in low-angle installations, water drainage corners keep the module clean.
Power-from-both-sides Power from both sides
  • HIT cells generate solar electricity
  • simultaneously on the front and on the back side.
  • This additional amount of light is combined
  • with the light taken up by the front side ofthe module.
Vertically-integrated-factory Vertically integrated factory
  • Efficient production flow improves product quality as entire process from wafer to cell is done at the same location.
  • No risk of damage of individual components during transportation between factories.
  • Made in Malaysia
HIT cell technology
The HIT solar cell is made of a thin monocrystal line silicon wafer surrounded by ultra-thina morphous silicon layers. This product offers the industry's leading performance and value, using state-of-the-art manufacturing techniques. The development of the HIT solar cell was supported in part by the New Energy and Industrial Technology Development Organization (NEDO).

Quality
Panasonic is truly committed to quality since it began developing and manufacturing solar PV technology in 1975. Our long track record is supported by our claim-rate of only 0.0036% in our European factory in Dorog, Hungary (as of September 2013).

Special features
HIT solar modules are 100% emission free, have no moving parts and produce no noise.The dimensions of the HIT modules enable a space saving installation and the achievement of maximum output power possible on a given roof area.

High performance at high temperatures
With its very low temperature coefficient of only -0.29%/°C, the HITsolar cell can maintain a higher efficiency than a con - ventional crystalline silicon solar cell, evenat high temperatures.

PID* Free *
Potential Induced Degradation Tested by 3rd party to be PID* free.

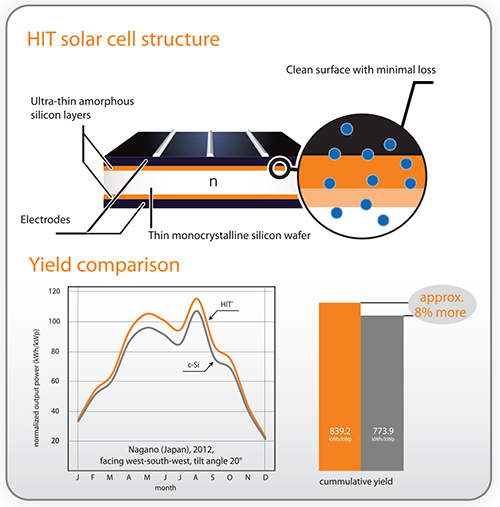

hit-solar-cell-structure
 Model  Cell efficiency  Module efficiency  Output/m2
 VBHN245SJ25  22.0%  19.4%  194W/M2
 VBHN240SJ25  21.6%  19.0%  190W/M2
 VBHN235SJ25  21.1%  18.6%  186W/M2

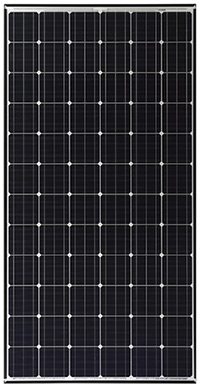

Photovoltaic module HITTM VBHN294SJ45
19.1% module efficiency
Industry top-level output for a PV module 1.6 m2
Compact size
Best fit in portrait due to shorter module length. Less space needed between module rows on flat roofs
Improved-shading Improved shading performance
Featuring 4 shading zones instead of 3
Unique-water Unique water
drainage on each corner for an improved self-cleaning
Quality Proven 4 Ways
1. Guaranteed by Panasonic
  • IEC and over 20 Panasonic internal tests
  • 40 years experience, longer than our 25 years Guarantee
   2. Record low claim rate

0.0038% failure rate after more than 10 years experience in Europe (as of Jan.2015)
3. Higher yield on field test

8% more yield than standard c-Si solar modules

   4. 3rd Party verified
  • Lifecycle testing (Long-Term-Sequential-Test) by TÜV Rheinland (tested on VBHN240SE10)
  • PID-free (by Fraunhofer Institute)

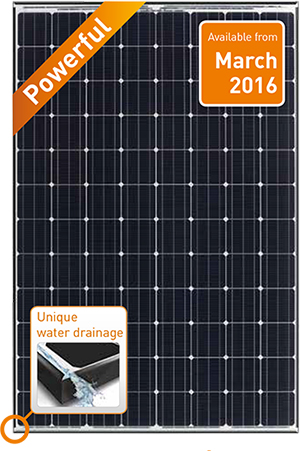

Photovoltaic module HIT VBHN330SJ47 / VBHN325SJ47
19.7% module efficiency

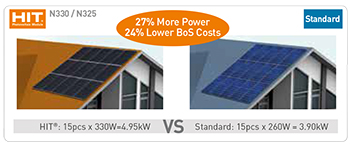

Enables reaching a higher output and lower specific installation and balance-of-system costs than with the same number of standard 60-cell modules.
100% Panasonic, 100% HIT®
Proudly featuring Panasonic‘s original invention, the heterojunction solar cell. With over 1 billion cells produced commercially over 18 years, 25 years after the breakthrough in the development and looking back to over 40 years of experience in solar, Panasonic really offers you a 25-year guarantee you can trust.
More energy, higher profit!
Helping you reach a higher final profit with your PV system!

330W / 325
• WHigh Efficiency
• High Performance at High Temperatures
• High Power Generation

Quality Proven 4 Ways
1. Guaranteed by Panasonic
  • IEC and over 20 Panasonic internal tests
  • Vertically integrated own manufacturing (wafer, cell and module)
   2. Record low claim rate

Less than 0.005% failure rate after more than 10 years experience
in Europe (as of September 2015)
Less degradation 3. Less degradation on the field

11 years actual data prove a reliable and stable performance.

   4. 3rd Party verified
  • Lifecycle testing (Long-Term-Sequential-Test) by TÜV Rheinland (tested on VBHN240SE10)
  • PID-free (tested by Fraunhofer Institute)
