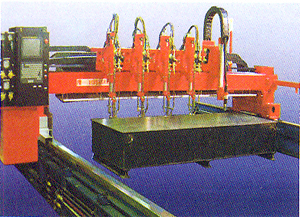

VERSAGRAPH CNC FLAME & PLASMA CUTTING MACHINE
|
An advanced investment for high cutting productivity with plasmabeveling capability |
|
Type: VERSAGRAPH |
4000 / 4500 / 5000 / 5500 / 6000 DXI |
Main Body |
Gantry Bridge / Double Side Drive |
Operator Console |
Left side |
Drive method |
Rack and Pinion drive for X and Y axis. |
Effective Cuttino width |
Rail soan minus 900 mm |
Effective cutting length |
Rail length (15000 mm) minus 2100 mm |
Torch mounting system |
Steel band connection system |
Cutting Speed |
6000 mmlmin |
Rapid/Marking speed |
18 000 m/min 112 000 m/min |
CNC Control system |
0-180; FS 1 0-160; FS |
NC Format |
EIA (American) ESSI ( European) |
Shape Library |
60 Standard Shape Patterns |
No. of Torch block |
Maximum 8 torches |
Minimum torch distance |
125mm |
Oxv-Fuel cutting capacity |
6 - 100 mm (Max. 50mm by 4 torches) |
Power Supply |
1 phase 1 oov / 3 phase 200 v + 10% , 50/60 Hz |
Hose & cable bearer |
Pol mer Energy Chain system for Longitudinal & Traverse. |
Optional accessories |
Plasma Cutting, Line Marking, Water Spray, Auto Ignition. |
| |
Hi-Lo Gas Manifold, Capacitive Height Sensor, Decoupling Holder for plasma torch. 3D Link device for bevel plasma cut. |
|
| |

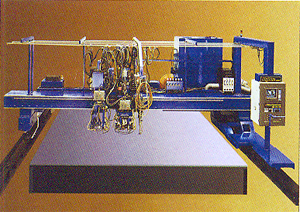

MYNUC CNC FLAME & PLASMA CUTTING MACHINE
|
Largest span, heavy duty with multiple tools for cutting, line marking, character marking & beveling |
|
Type: MYNUC |
4 000 mm through 12 000 mm |
Main Body |
Gantry Bridge / Double Side Drive |
Operator Console |
Left side |
Drive method |
Rack and Pinion drive for X and Y axis. |
Effective Cutting width |
Rail span minus 900 mm |
Effective cutting length |
Rail length minus 2 100 mm |
Torch mounting system |
Steel band connection system |
Cutting Speed |
6000 mmlmin |
Rapid/Marking speed |
Up to 24 000 m/min |
CNC Control system |
D-180i FS / D-16Oi FS / MB 15 FS |
NC Format |
EIA (American) ESSI ( European) |
Shape Library |
60 Standard Shape Patterns |
No. of Torch block |
Maximum 20 torches |
Minimum torch distance |
125mm |
Oxy-Fuel cutting capacity |
6 - 200 mm ( Max. 50mm by 4 lorches) |
Power Supply |
1 phase 100. 1 3 phase 200 v + 10% . SO/60 Hz |
Hose & cable bearer |
Polymer Energy Chain system for Longitudinal & Traverse. |
Optional accessories |
Plasma Cutting, Line Marking, Water Spray, Auto Ignition. |
| |
Hi-La Gas Manifold, Capacitive Height Sensor, Decoupling |
| |
Holder for plasma torch, 3D Link device for bevel plasma cut. |
|
| |

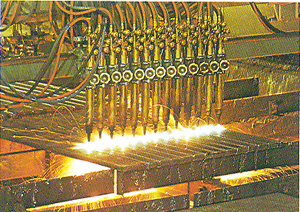

FLAME PLANER CUTTING MACHINE |
Heavy duty, precision and multipe flame stripping machine |
|
Type: FLAME PLANER |
4000 to 12 000 mm |
Main Body |
Gantry Bridge 1 Single Side Drive |
Operator Console |
Left side |
Drive method |
Friction |
Effective cutting length |
Rail length minus 4.0 m |
Effective cutting width |
Rail span minus 1.0 m |
Plate thickness & Shapes |
5 - 500 mm 1 I , V , Y , X . |
Minimum Cutting Width |
Parallel - 50 mm 1 Bevel - 550 mm |
Parallel 1 Bevel Cutting Torch |
Any number |
Cutting Speed |
100 - 1 200 mm/min |
Speed Control |
S.C.R. Control |
Driving Direction |
Forward and Reverse |
Longitudinal Accuracy |
Long. Straightness + 0.1 mm / 12 000 mm |
Power Supply |
1 phase 1OOv / 3 phase 200 v + 10% , 50/60 Hz |
|
| |

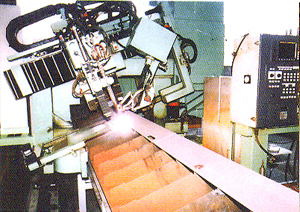

ABGRAPH CNC ANGLE BAR PROFILE CUTTING MACHINE
|
Special profile cutting machine for fl ats, angle, L, T and Bulb profiles in the shipbuilding industry |
|
Type: ABGRAPH |
|
Main Body |
Gantry Bridge |
Drive method |
Rack and Pinion |
Rail span |
1,700 mm |
Machine length |
5,600 mm |
Machine width |
3,800 mm |
Cutting Speed |
6,000 mm/min |
Marking speed |
12,000 mm/min |
Rapid Speed |
36,000 mm/min |
CNC Control system |
FANUC MB 15 FS |
Precision Oxygen Plasma Cutting |
Powder marking for line |
|
Dot marking for labeling |
|
Integrated Fume Collection |
ABPRO system accepts TRIBON files |
|
| |
Cutting Machines |
|
| |
|
Portable Cutting Machine for Straight-Line - IK-12 max 3 |
|
|
| |
|
| |
|

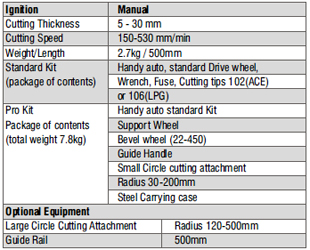

Portable Cutting Machine for multi purpose - Handy Auto series
Increase your productivity with our largest range of portable machines |
| |
|
|
|
| |
|
| |
Medium Size Cutting Machines - PNC-10 Elite |
Portable-type CNC Cutting Machine and
A low cost investment
for high cutting productivity |
|
| |
|
| |
|
| |
|
Nanograph

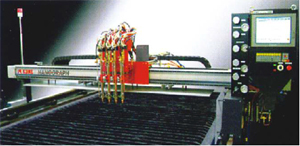

CNC OXY-Fuel anJLplasma cutting machine |
A high performance CNC investment for
bigh cutting Produclivity
for most applications |
|

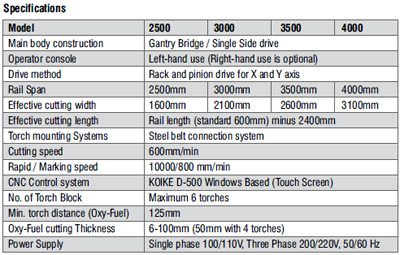

* Plasma Cutting System is available for Model
2500-3500.
Model 4000 is specialized for gas cutting only. |
 |
|
|
|
|
|
