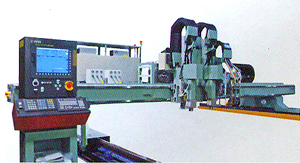

KAMS Full Plate NC Line / Text Printing Systems
High-accuracy, high-efficiency marking is achieved with the automation of the origin detecting and coordinate rotating functions.
KAMS Full Plate NC Line / Text Printing Systems


• Marking shape: Diagrams and characters composed of straight lines and curves
• Marking method: Spray-type torch for white/blue background (set of two)
• Rail span: 4.000 6.500mm (models available in 500mm pitches)
• Printer head can be mounted
• The processing performance of cutting machines can be enhanced by transferring the marking/printing process to the NC marking device.

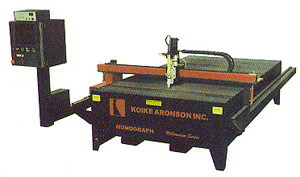

MONOGRAPH 1650 CNC PLASMA CUTTING MACHINE
An entry level compact CNC investment for high cutting productivity of sheet metal
MONOGRAPH 1650 CNC PLASMA CUTTING MACHINE
Machine Color

Effective cutting area
1.5 M x 3.0 M
Max plate thickness
19mm
Rapid traverse speed
35 ml min.
Machine height
1,605 mm
Machine width
2,115mm
Machine length
4,850mm
Drive
Pulse width modulation wlrack and pinion
Air plasma system
Hypertherm Powermax 1650
Planetary gear units
9 arc-min backlash
Approximate ship weight
1,130 kg
Machine Power Supply
220 Volts 11 Phase 1 50 - 60 Hz @ 15 amps.
Plasma power source
400 Volts 1 3 Phase 1 50 - 60 Hz
Model MONOGRAPH
1650

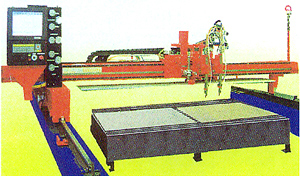

Nanograph CNC Flame & Plasma Cutting Machine
A high performance CNC investment for high cutting productivity for most applications
Nanograph CNC Flame & Plasma Cutting Machine
Model' NANOGRAPH
2500
3000
3500
4000
Main Bodv Construction
Gantrv Bridoe 1 Sinole Side Drive
Ooerator Console Selectable
Left or Right side
Drive method
Rack and Pinion drive for X and Y axis.
Rail soan
2500 mm
3000 mm
3500 mm
4000 mm
Effective Cuttino width
1600mm
2100 mm
2600 mm
3100 mm
Effective cuttino lenoth
Raillenoth ( Standard 6000 rnrn) minus 2400 mm
Torch mountinq svstem
Steel band connection svstem
Cuttino Speed
6000 mm/min
Raoid/Markino speed
10000 mm/min
CNC Control svstem
KOIKE D 500 Windows Based (Touch Screen )
Shape Librarv
60 Standard Shape Pattems
No. ofTorch block
Maximm 6 torches
Minimum torch distance
125mm
Ow-Fuel cutting capacity
6-100mm ( Max. 50mm with 4 torches )
Power Supply
Sinqle phase 100 volts / Three Phase 200 volts + 10% , 50160 Hz

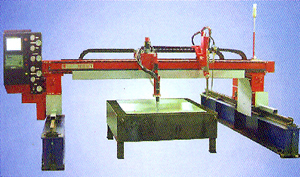

MAXIGRAPH CNC FLAME & PLASMA CUTTING MACHINE
A heavy duty advanced CNC investment for high cutting productivity in the shipbuilding industry
MAXIGRAPH CNC FLAME & PLASMA CUTTING MACHINE
Type: MAXI GRAPH
SD 2.51 3.0 1 3.5 m
DD 3.5/4.0/4.5/5.0 I 5.5m
Main Body
Gantry Bridge 1 Single or Double Side Drive
Operator Console
Left side
Drive method
Rack and Pinion drive for X and Y axis.
Effective Cutting width
1.6 / 2.1 12.6 m
I 2.6/3.1 13.6/4.1/4.6 m
Effective cutting length
Rail length minus 2.35m
Rail length minus 1.75 m
Torch mounting system
Steel band connection system
Cutting Speed
6000 mm/min
Rapid/Marking speed
9 m/min / 6 m/min
15 m/min / 9 m/min
CNC Control system
Hybrid 400 I D-180i FS

NC Format
EIA (American)
ESSI ( European)
Shape Library
60 Standard Shape Patterns

No. of Torch block
Maximum 4 torches
Maximum 6 torches
Minimum torch distance
125mm

Oxy-Fuel cutting capacity
6 100 mm ( Max. 5umm by 4 torches)
Power Supply
1 phase 100v / 3 phase 200 v + 10% , 50 / 60 Hz
Hose & cable bearer
Polymer Energy Chain system for Longitudinal & Traverse.
Optional accessories
Plasma Cutting, Line Marking, Water Spray. Auto Ignition.
Hi-La Gas Manifold, Capacitive Height Sensor,
